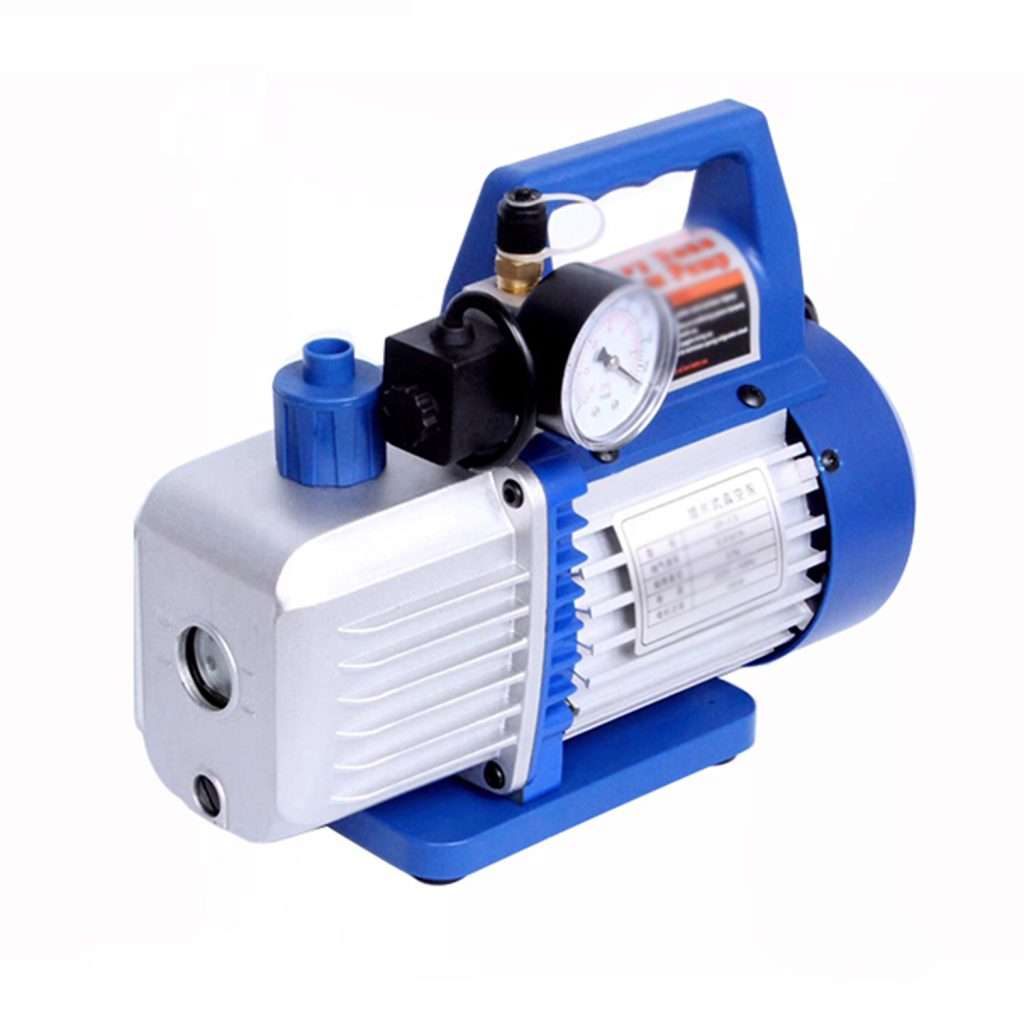

Model | VP115(VP-1) | VP125(VP-1.5) | VP135(VP-2) | VP145(VP-2.5) | VP160(VP-3) | VP180(VP-4) | VP1100(VP-5) | |
Flow Rate | 50Hz | 1.5CFM | 2.5CFM | 3.5CFM | 4.5CFM | 6CFM | 8CFM | 10CFM |
42L/min | 70L/min | 100L/min | 128L/min | 170L/min | 226L/min | 283L/min | ||
60Hz | 1.8CFM | 3CFM | 4CFM | 5CFM | 7CFM | 9CFM | 12CFM | |
50L/min | 84L/min | 114L/min | 142L/min | 198L/min | 254L/min | 340L/min | ||
Ultimate Vacuum | 5pa | 5pa | 5pa | 5pa | 5pa | 5pa | 5pa | |
150microns | 150microns | 150microns | 150microns | 150microns | 150microns | 150microns | ||
Power | 1/4HP | 1/4HP | 1/3HP | 1/3HP | 1/2HP | 3/4HP | 1HP | |
Inlet Port | 1/4”Flare | 1/4”Flare | 1/4”Flare | 1/4”Flare& | 1/4”Flare& | 1/4”Flare& | 1/4”Flare& | |
Oil Capacity | 320ml | 300ml | 350ml | 350ml | 450ml | 700ml | 800ml | |
Dimensions(mm) | 270×119×216 | 270×119×216 | 278×119×216 | 278×119×216 | 370×140×250 | 370×140×250 | 370×140×250 | |
Weight | 5.3kg | 5.5kg | 6.5kg | 6.8kg | 10kg | 14kg | 14.5kg | |
Model | VP215(2VP-0.5) | VP225(2VP-1) | VP235(2VP-1.5) | VP245(2VP-2) | VP260(2VP-3) | VP280(2VP-4) | VP2100(2VP-5) | |
Flow Rate | 50Hz | 1.5CFM | 2.5CFM | 3.5CFM | 4.5CFM | 6CFM | 8CFM | 10CFM |
42L/min | 70L/min | 100L/min | 128L/min | 170L/min | 226L/min | 283L/min | ||
60Hz | 1.8CFM | 3CFM | 4CFM | 5CFM | 7CFM | 9CFM | 12CFM | |
50L/min | 84L/min | 114L/min | 142L/min | 198L/min | 254L/min | 340L/min | ||
Ultimate Vacuum | 3×10ֿ¹pa | 3×10ֿ¹pa | 3×10ֿ¹pa | 3×10ֿ¹pa | 3×10ֿ¹pa | 3×10ֿ¹pa | 3×10ֿ¹pa | |
25microns | 25microns | 25microns | 25microns | 25microns | 25microns | 25microns | ||
Power | 1/4HP | 1/3HP | 1/3HP | 1/2HP | 3/4HP | 1HP | 1HP | |
Inlet Port | 1/4”Flare | 1/4”Flare | 1/4”Flare | 1/4”Flare& | 1/4”Flare& | 1/4”Flare& | 1/4”Flare& | |
Oil Capacity | 180ml | 280ml | 360ml | 350ml | 700ml | 600ml | 700ml | |
Dimensions(mm) | 270×119×216 | 278×119×216 | 320×134×232 | 320×134×232 | 370×140×250 | 370×140×250 | 390×140×250 | |
Weight | 6kg | 7kg | 11kg | 11.8kg | 15kg | 15.5kg | 16kg | |
We provide the best pre-sales, in-sales and after-sales services, just for the success of your refrigerant business
7×24 hours online, quick answers, accurate quotes, support customization.
Real-time update of stocking, packaging, and delivery progress, one-to-one tracking.
Problems are handled quickly, support reissue, refund, and full compensation for objections.
We offer a full range of refrigerants and accessories to meet diverse customer needs, simplifying the purchasing process and enhancing convenience.
Utilizing abundant fluorite resources and a streamlined supply chain, we reduce production costs and ensure affordable pricing.
15-year industry veteran exporting refrigerants to 100+ countries, adept at navigating import policies, quotas, and packaging norms for seamless global compliance.
Our products meet strict industry standards, ensuring 99.9% purity, and are certified by CE, DOT, and KGS for safety and reliability.
We support shipping refrigerants combined with products from other suppliers in shared containers, providing cost-effective and efficient delivery solutions.
If You Are Interested In Our Products, Please Contact With Us !
